The Raeda Medius Bus
Quick Measures
| DIMENSIONS | 30' | 35' | 40' |
|---|---|---|---|
| Length | 30.28' (9.23m) | 34.99' (10.665m) | 40.03' (12.2m) |
| Width | 98.43'' (2.5m) | 102'' (2.59m) | 102'' (2.59m) |
| Height | 120.47'' (3.06m) | 120.47'' (3.06m) | 127.56'' (3.24m) |
| Wheelbase | 191.34'' (4.86m) | 191.34'' (4.86m) | 253.94'' (6.45m) |
| SEATING | |||
| Passenger Seats* | up to 23+1 | up to 30+1 | up to 41+1 |
| Wheelchair Positions | up to 2 | up to 3 | up to 3 |
| PERFORMANCE | |||
| Turning Radius | 24.98' (7.615m) | 28.08' (8.561m) | 31.51' (9.606m) |
| Approach Angle | 9º | 9º | 9º |
| Departure Angle | 6º | 5º | 5º |
| Breakover Angle | 8º | 8º | 9º |
*Passenger capacity shown reflects standard configuration. Capacity may change dependent on custom design and components used.

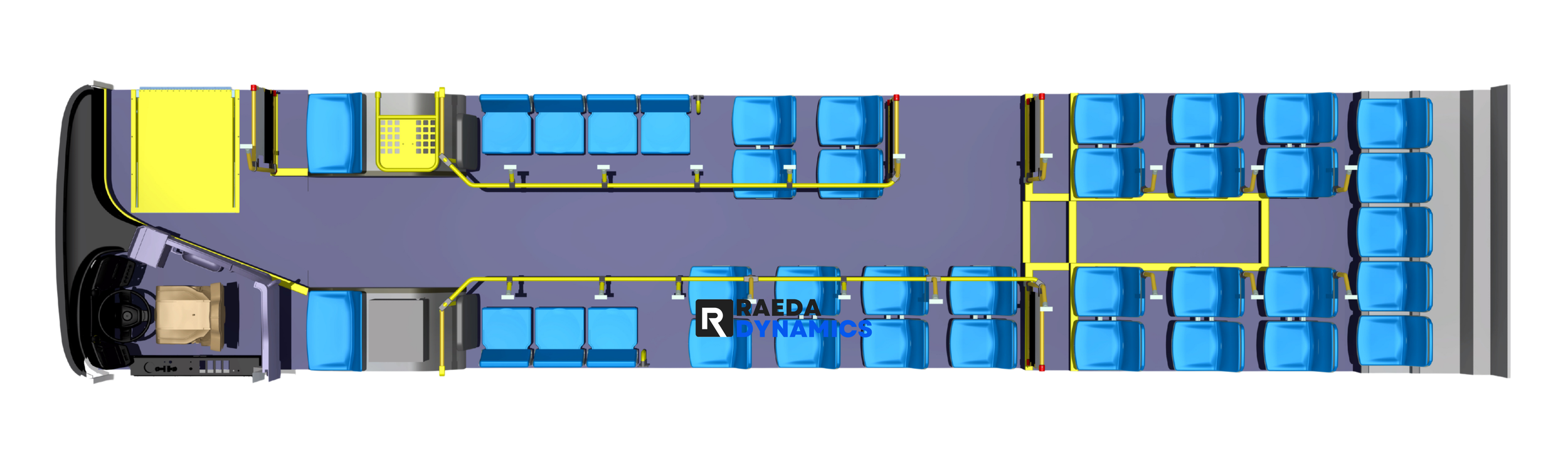

Standard Floorplan
Features
Standard Stainless Steel monocoque chassis, designed for 12-years of service. Composite lower panels and wheel well protection system, handle harsh conditions with ease.
Symmetrical entry and exit doors simplify replacement parts service. Split windshield design, lower cost of replacement glass.
Mobility-focused design allows up to 4 wheelchair positions and 2 wheelchair ramps, increasing accessibility for all passengers.
